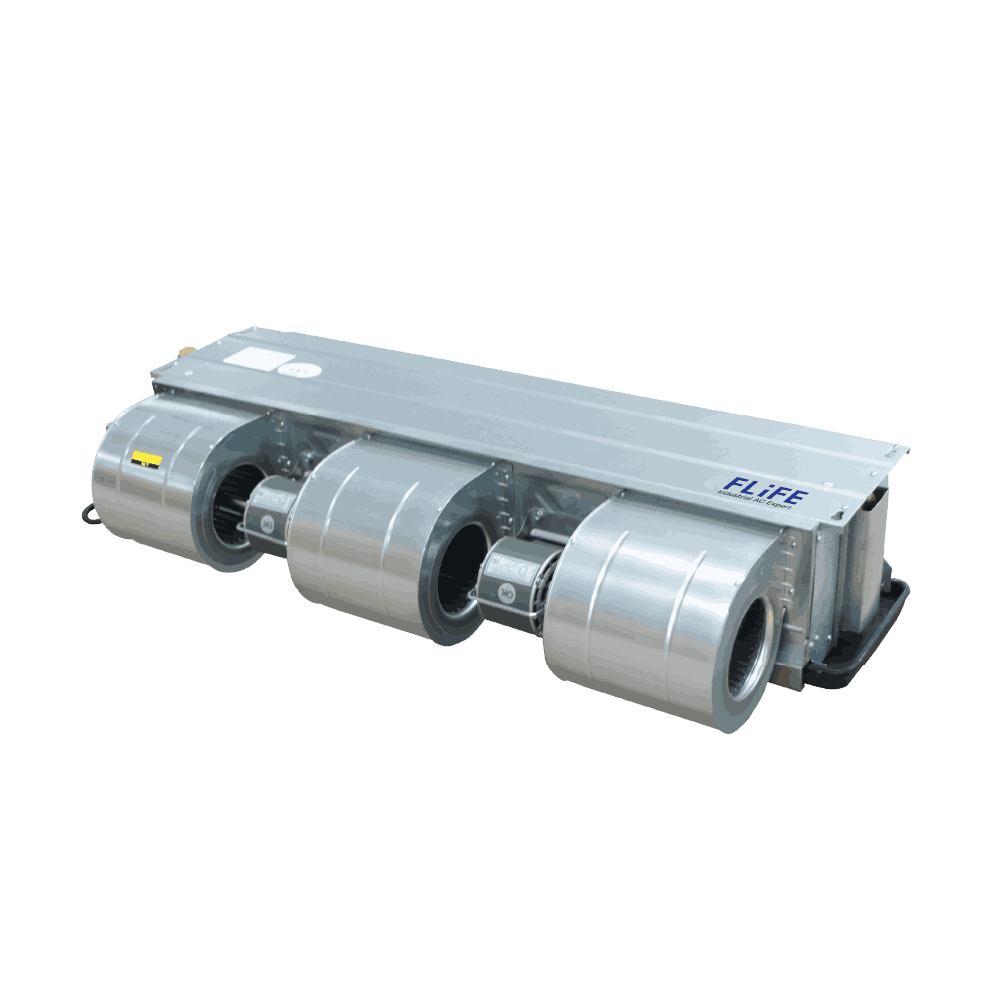

FCU（Fan Coil Unit）
Cooling capacity range : - 2.4 – 14.37 kW Air volume range : - 340 – 2380 m³/h
Product Features
- ESP has a wide selection range, up to 400pa - A wide selection range of cooling capacity and air volume to meet a variety of usage scenarios - Customizable filters to meet scene cleanliness requirements
Description
FLIFE Fan Coil Unit (FCU) Core Advantages: - Core Structure & Working Principle - Components: Consists of a fan, heat exchange coil (copper tubes with aluminum fins), water piping, casing, condensate tray, and air filter. - Types: - By static pressure: Standard (low static pressure) vs. high static pressure. - By coil rows: Two-row (standard cooling) or three-row (high cooling capacity). - By piping: Dual-pipe (shared cooling/heating), three-pipe (separate cooling/heating loops), or four-pipe (fully independent cooling/heating) - Operation: Forces indoor air circulation via a fan, exchanging heat with chilled/hot water from a central system. Chilled water (7–12°C) or hot water (40–50°C) is supplied externally, with fresh air introduced via a separate ventilation system Technical Advantages： - Flexibility: Adjustable fan speeds and dynamic cooling capacity for zoned temperature control. - Energy Efficiency: Eliminates large ducts, reducing energy consumption by 20–30% compared to full-air systems. - Compact Design: Available in horizontal, vertical, or cassette configurations, ideal for space-constrained areas like hotel rooms and offices
