Terminal Cabinet AC units
Return air type/Fresh air type Ceiling/Vertical/Horizontal
Ceiling Cabinet : Fresh air type - 19.6kW ~ 450 kW - 1600-24000 m³/h Vertical/Horizontal Cabinet : Fresh air type - 19.6kW ~ 450 kW - 1600-24000 m³/h Return air type - 8.4kW ~ 198.2 kW - 1500-24000 m³/h
Product Features
Description

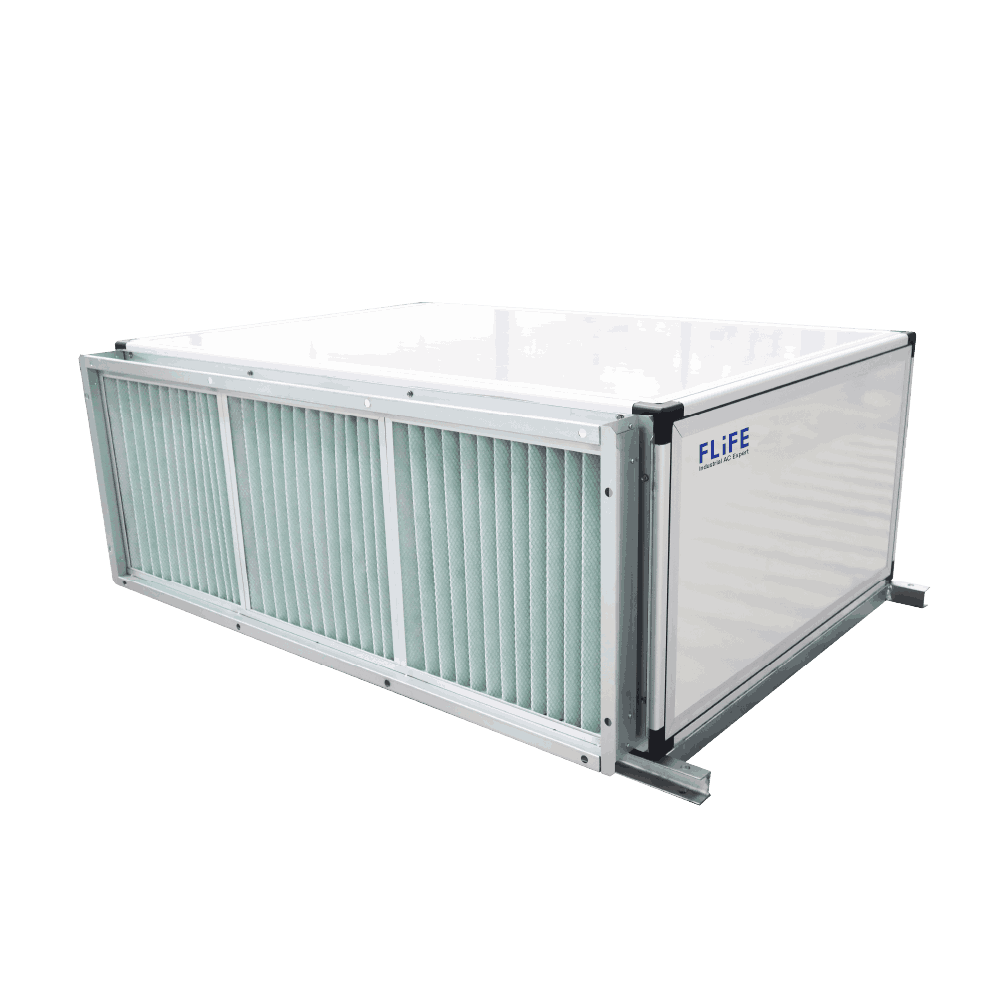

FLIFE Ceiling-Mounted, Horizontal, and Vertical Cabinet Air Terminal Units: Easy Installation, Customizable Filters, Energy Efficiency, and Environmental Protection Core Advantages: - Modular Design & Standardized Workflow FLIFE air terminal units (ceiling-mounted, horizontal, and vertical cabinets) feature modular designs for rapid assembly: - Ceiling-Mounted Units: Pre-installed metal brackets (e.g., L-shaped mounting plates) secure the unit to walls. Installation involves measuring, drilling, and balancing adjustments. - Vertical Cabinets: Adjustable leveling feet allow height and tilt adjustments to adapt to uneven floors. - Horizontal Cabinets: Support non-wood panel installation methods (e.g., metal rail mounting or epoxy resin anchoring) to minimize structural impact. - Filter Types & Applications FLIFE supports tailored filter configurations, including: - HEPA Filters: ≥99.97% efficiency for hospitals, labs, and high-cleanliness environments. - Activated Carbon Filters: Remove odors and VOCs, ideal for cosmetics facilities or kitchens. - Electrostatic Filters: Washable and reusable, reducing maintenance costs
